KL1000 G3 - Programming and Operating Instructions

KL1000 G3 Programming and Operating Instructions [GB]



The KL1000 G3 is the third generation KL1000 series cabinet lock introducing key-override, on-door battery change and updated finishes. Sharing the same fittings & fixings as the KL1000 Classic, this lock is ideal for upgrading older installations with increased flexibility and convenience for both guests and staff.
  1. 20 User Codes
  2. Auto-unlock after set period
  3. Key-override
  4. On-door battery change

Features

Operating


FinishesBlack Chrome, Silver Chrome
IP Rating
Refer to fitting instructions. Gasket required.
IP55
Key OverrideYes
Lock TypeCam*
Operations100,000
OrientationsVertical, Left and Right
Temperature Range0°C - 55°C

Power


Batteries
2x AAA
Battery OverrideYes
On-door Battery ChangeYes


*Slam latch accessory available separately. The slam latch is fitted in-lieu of the cam.


Management

Master Code
Management and administration of the lock. In Public Function, the Master Code will also clear an active User Code. The Master Code is 8 digits in length.

Sub-Master Code
Basic administration of the lock. The Sub-Master Code is 8 digits in length.

Technician Code
In Public Function, the Technician Code will open a lock but not clear an active User Code. The lock will automatically re-lock. The Technician Code is 6 digits in length.

Standard Features

Re-Lock Delay

The number of seconds before the lock will re-lock in any Private Function.

Restrict Operating Time

Control the hours during which the lock will operate.

Private Function

Once set, the User Code allows repeated unlocking of the lock. The lock will always re-lock automatically. This function is used for long term usage where a locker is typically allocated to an individual. User Codes are 4 digits in  length.

User Codes

A default User Code of 2244 is set.

Dual Authorisation

Any two valid User Codes must be entered for access.

Public Function

The user enters their own personal four-digit code to lock the lock. Entering the same code will open the lock and clear the code, ready for the next user. This function is used for short term, multi occupancy applications, e.g. a  locker in a leisure centre. User Codes are 4 digits in length.

Single Entry

Single entry of the chosen User Code will lock the lock.

Double Entry

The chosen User Code must be repeated for locking.

Set a Maximum Locked Period

When set, the lock, if locked, will unlock automatically after a set number of hours.

Auto-unlock at a set time

When set, the lock, if locked, will unlock automatically at a set time.

Programming

Master User

The Master User is effectively the administrator of the lock. All programs are available to the Master User.

Change Master Code

#Master Code • 01 • New Master Code • New Master Code ••
Example: #11335577 • 01 • 12345678 • 12345678 ••
Result: Master Code has been changed to 12345678

Standard User

A standard user can use the lock within the configuration applied

Set or Change a User Code

#(Sub)Master Code • 02 • User Position • User Code ••
Example: #11335577 • 02 • 01 • 1234 ••
Result: The User Code 1234 has been added to position 01
     Note: A user can change their own code using the program below:
#User Code • New User Code • New User Code ••
Example: #1234 • 9876 • 9876 ••
Result: The user's code has now been set to 9876.

Delete a User Code

#(Sub)Master Code • 03 • User Position ••
Example: #11335577 • 03 • 06 ••
Result: The User Code in position 06 has been deleted
     Note: Entering 00 as position will delete all User Codes

Sub-Master User

The Sub-Master has access to the majority of the programs but cannot change or delete the Master User. The Sub-Master User is not required for operation.

Set or Change Sub-Master Code

#(Sub)Master Code • 04 • New Sub-Master Code • Confirm New Sub-Master Code ••
Example: #11335577 • 04 • 99775533 • 99775533 ••
Result: The Sub-Master Code 99775533 has been added

Delete the Sub-Master Code

#Master Code • 05 • 05 ••
Example: #11335577 • 05 • 05 ••
Result: The Sub-Master Code has been deleted

Technician User

The technician can open a lock. After opening, the lock will automatically re-lock after four seconds. In public function, the active user code will remain valid. In private function, the technician is essentially an
additional standard user.

Set or Change Technician Code

#(Sub)Master Code • 13 • New Technician Code • Confirm New Technician Code ••
Example: #11335577 • 13 • 555777 • 555777 ••
Result: The Technician Code 555777 has been added

Delete Technician Code

#(Sub)Master Code • 13 • 000000 • 000000 ••
Example: #11335577 • 13 • 000000 • 000000 ••
Result: The Technician Code has been deleted

Operating Functions

Public Use - Double Entry

The default state of the lock is unlocked. To lock, the user must enter a 4 digit code of their choice and repeat for confirmation. After locking, on re-entering their code, the lock will unlock and remain unlocked
ready for the next user.
      Note: Entering the Master or Sub-Master code when the lock is in Public Function will clear the active user code and put the lock into an unlocked state ready for a new user.
#Master Code • 22 ••
Example: #11335577 • 22 ••
Result: The lock will remain open until the next user enters a 4 digit code. The user will be required
to confirm their code (double entry).
      Note: On re-entry of the same 4-digit code, the lock will open.

Public Use - Single Entry

The default state of the lock is unlocked. To lock, the user must enter a 4 digit code of their choice. The user does not need to confirm their code. After locking, on re-entering their code, the lock will unlock and
remain unlocked ready for the next user.
#Master Code • 24 ••
Example: #11335577 • 24 ••
Result: The lock will remain open until the next user enters a 4 digit code. The user will not be
required to confirm their code. Once entered, the lock will lock.
      Note: On re-entry of the same 4-digit code, the lock will open.

Private Use

The default state of the lock is locked. A single default user is registered with a code of 2244. A total of 20 user codes can be added to the lock. Entering a valid user code will unlock the lock. The lock will
automatically re-lock after four seconds.
#Master Code • 26 ••
Example: #11335577 • 26 ••
Result: The lock will remain locked until a User, Technician, Sub-Master or Master Code is entered.

Configuration

Locked LED Indication

When enabled (default), the red LED will flash every 5 seconds to indicate locked status.
#Master Code • 08 • Enable/Disable <00|01> ••

Enable
Example: #11335577 • 08 • 01 ••
Result: Enables locked LED indication.

Disable
Example: #11335577 • 08 • 00 ••
Result: Disables locked LED indication.


Auto-Unlock after X Hours

Unlocks the lock automatically after a pre-determined time of being locked.
#Master Code • 10 • Time <01-24> ••
Example: #11335577 • 10 • 06 ••
Result: The lock will unlock 6 hours after locking.

Disable
#Master Code • 10 • 00 ••

Keypad Rotation

The orientation of the keypad can be set to vertical, left or right. A new keymat/buttons may be required.
1. Disconnect power
2. Press and hold 8 button and reconnect power
3. Within 3 seconds, enter sequence: 1 2 3 4
4. Blue LED will flash twice to confirm

Engineering Functions

Battery Level Check

#Master Code • 87 ••
Example: #11335577 • 87 ••


<20%
20-50%
50-80%
>80%
••
••  ••
••  ••  ••
••  ••  ••  ••

Factory Reset

Via Keypad

#Master Code • 99 • 99 ••
Example: #11335577 • 99 • 99 ••
Result: The motor will engage and both LEDs will flash to indicate the lock has reverted to factory settings.

Via Power Reset

Factory reset requires the handle to be in the open position and the front cover security screw to be exposed.
  1. Enter any valid code to open the handle
  2. Remove the security screw (torx)
  3. Disconnect the power by sliding the front cover away from the handle
  4. Press and hold 1 button
  5. Whilst continuing the hold the 1 button, reconnect the power by sliding the front cover to its closed position
  6. Release the 1 button and then press the 1 button 3 times in quick succession

(Unknown Code) Factory Reset

If a valid code is not known, the lock will need to be removed from the door. The Master Key is required for this procedure.

​
  1. Insert and turn the Master Key to open the lock. Note that the handle itself will not rotate
  2. With the door open, unscrew and remove the lock from the door

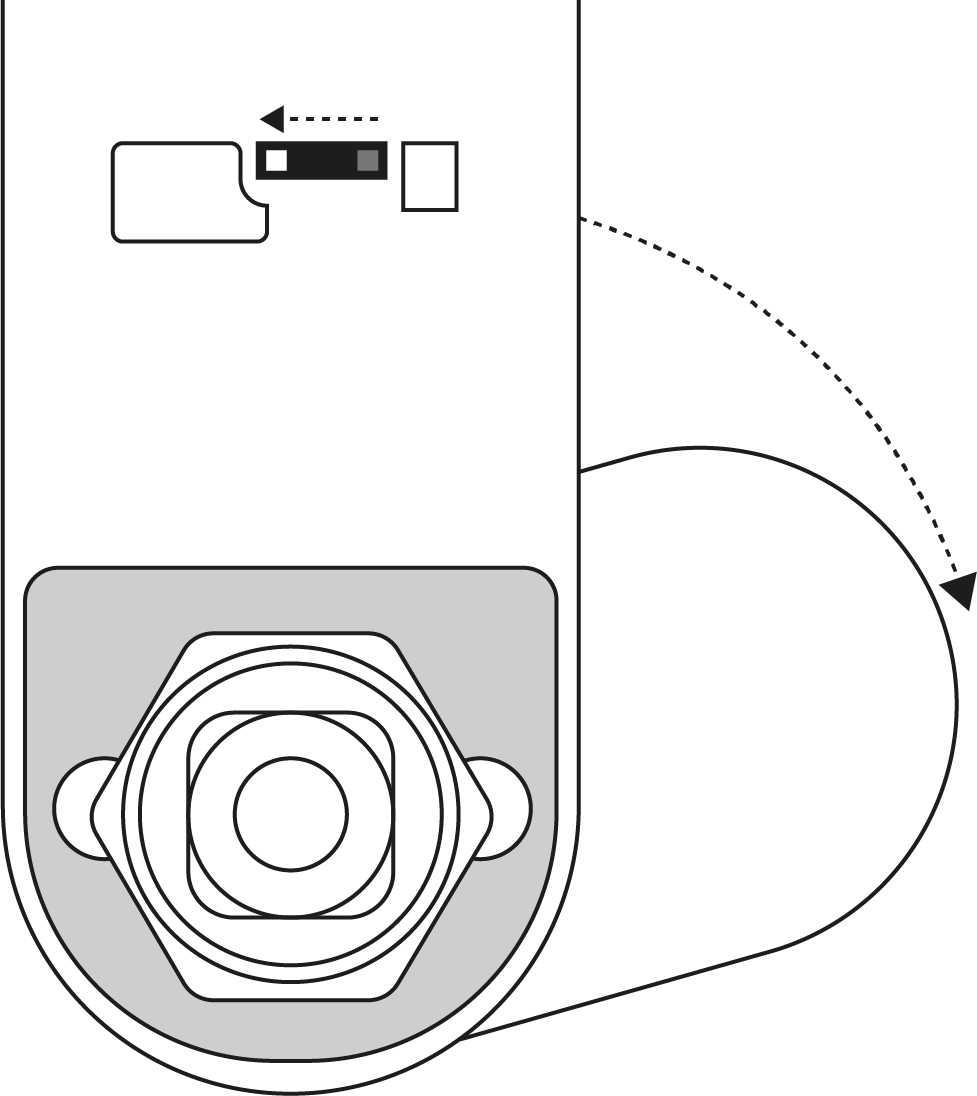

  3. Locate the latch bar in the slot on the back of the lock.
  4. Using a small pin or paperclip slide the latch bar from right to left. Holding the latch bar to the left, open the handle.
  5. Follow Known Code steps 2-6 above to continue with the factory reset process
