Overview

Auxiliary Connections

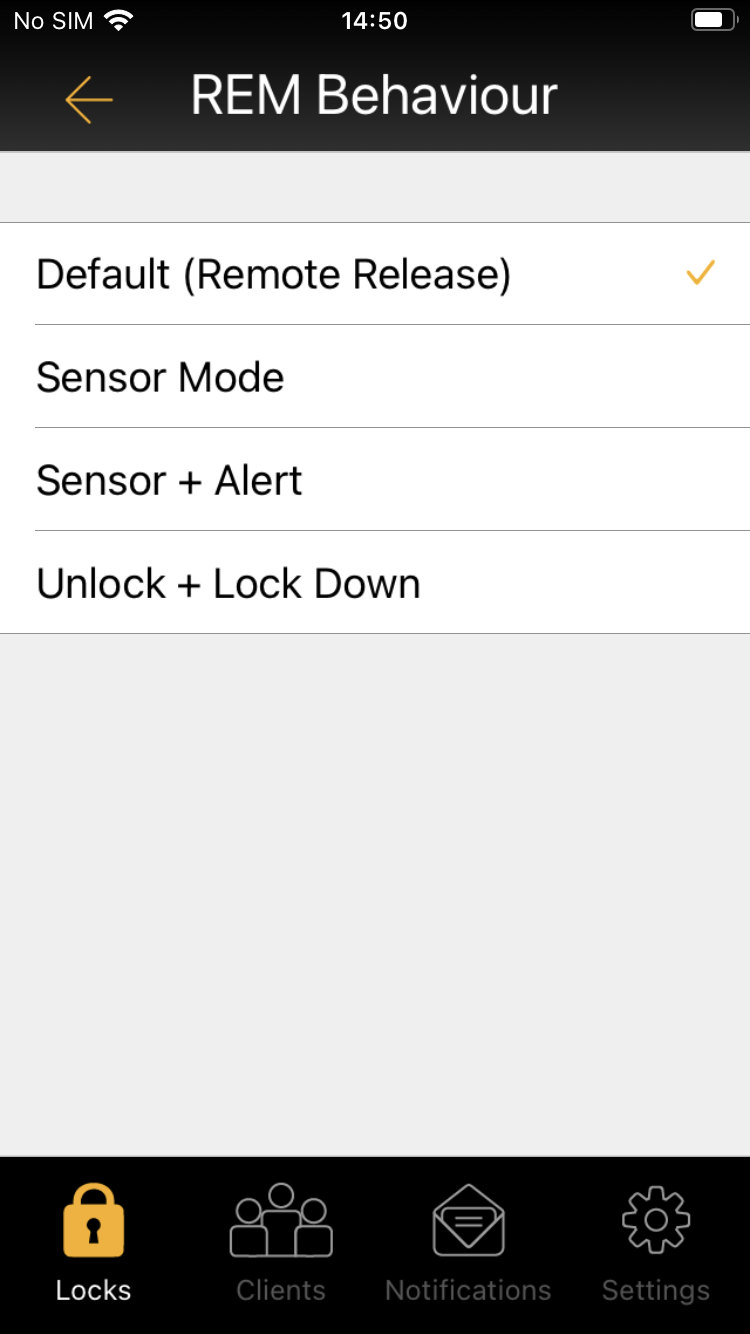

Modes of Operation

Default Remote Release (INPUT, INPUT)

1. REM 1 can be connected to a push button – and will provide an audit entry into the Locks Audit trail as well as opening the lock. Here the  REM port itself would be an INPUT and would detect the HIGH/LOW state change, and when detected would carry out the programmed function -> in this case adding an audit entry to the Lock’s Audit trail, and unlocking the lock. In a rest state (of the sensor) the REM port would detect the LOW / REST state; and then once the push button is activated; then the push button would change to a HIGH / ALARM state which the Lock will detect.
2. REM 2 can be connected to a push button – and will provide an audit entry into the Locks Audit trail as well as opening the lock. Here the  REM port itself would be an INPUT and would detect the HIGH/LOW state change, and when detected would carry out the programmed function -> in this case adding an audit entry to the Lock’s Audit trail, and unlocking the lock. In a rest state (of the sensor) the REM port would detect the LOW / REST state; and then once the push button is activated; then the push button would change to a HIGH / ALARM state which the Lock will detect.



Sensor Mode (INPUT, INPUT)

Allows two dry contact switches or sensors (door status and latch monitoring) to be connected. Trigger entry will be added to the audit trail.

1. REM 1 can be connected to a sensor – and will provide an audit entry into the Locks Audit trail. Here the REM port itself would be an INPUT and would detect the HIGH/LOW state change, and when  detected would carry out the programmed function -> in this case adding an  audit entry to the Lock’s Audit trail. In a rest state (of the sensor) the REM port would detect the LOW / REST state; and then once the sensor is activated; then the sensor would change to a HIGH / ALARM state which the Lock will detect.
2. REM 2 can also be connected to a sensor – and will provide an audit entry into the Locks Audit trail. Here the REM port itself would be an INPUT and would detect the HIGH/LOW state change, and when detected would carry out the programmed function -> in this case  adding an audit entry to the Lock’s Audit trail. In a rest state (of the sensor) the REM port would detect the LOW / REST state; and then once the sensor is activated; then the sensor would change to a HIGH / ALARM state which the Lock will detect.



Sensor + Alert (INPUT, OUTPUT)

A hybrid mode combining the support for a single dry contact switch or sensor (as per sensor mode) and an output. The output can be connected  to any compatible device, such as CCTV, with an input that supports the detection of a falling (changing) voltage.

1. REM 1 can be connected to a sensor – and will provide an audit entry into the Locks Audit trail. Here the REM port itself would be an INPUT and would detect the HIGH/LOW state change, and when detected would carry out the programmed function -> in this case adding an  audit entry to the Lock’s Audit trail. In a rest state (of the sensor) the REM port would detect the LOW / REST state; and then once the sensor is activated; then the sensor would change to a HIGH / ALARM state which the Lock will detect.
2. REM 2 would be used to trigger the CCTV. The CCTV solution being used would need to be able to detect a HIGH/LOW state change  via an input. The REM port on the lock side would be acting as an OUTPUT. In the LOW / REST state the CCTV would not be triggered and then when the door is opened/unlocked the lock will provide the state change to a HIGH / ALARM state which the CCTV system will need to detect and then be programmed to enable recording.



Unlock + Lock Down (INPUT, INPUT)

1. REM 1 can be connected to a push button – and will provide an audit entry into the Locks Audit trail as well as opening the lock. Here the REM port itself would be an INPUT and would detect the HIGH/LOW state change, and when detected would carry out the programmed  function -> in this case adding an audit entry to the Lock’s Audit trail, and unlocking the lock. In a rest state (of the sensor) the REM port  would detect the LOW / REST state; and then once the push button is activated; then the push button would change to a HIGH / ALARM state which the Lock will detect.

2. REM 2 can be connected to a push button or any other device providing a state change output to the lock input – and will provide an audit  entry into the Locks Audit trail as well as opening the lock. Here the REM port itself would be an INPUT and would detect the HIGH/LOW state change, and when detected would carry out the programmed function -> in this case putting the lock into lock-down mode. In a rest state (of the sensor) the REM port would detect the LOW / REST state; and then once the push button is activated; then the push button would change to a HIGH / ALARM state which the Lock will detect.
